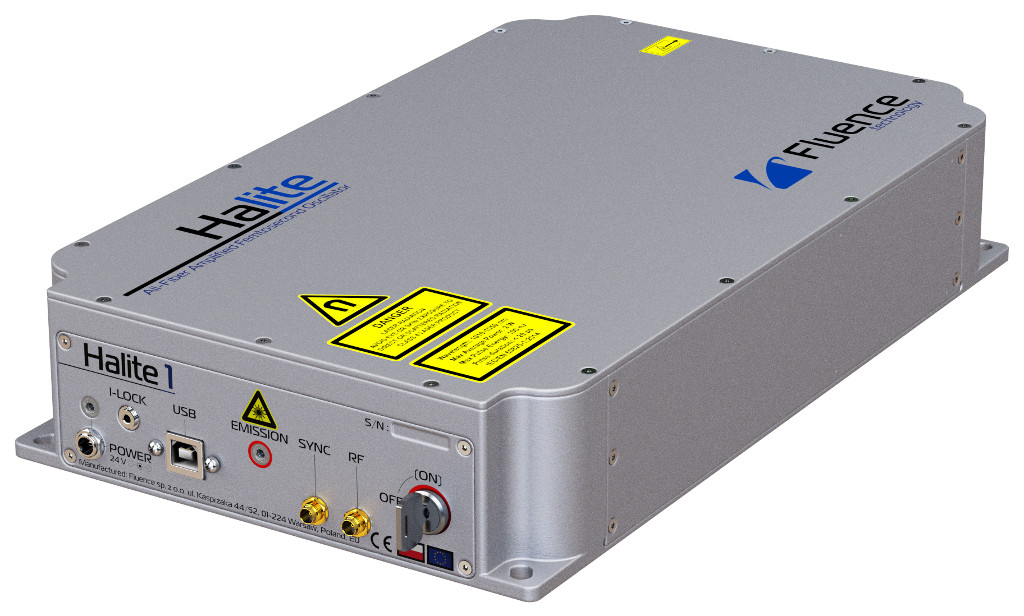

Halite: Single-box compact femtosecond laser
Halite is a compact, single-box, all-fiber femtosecond laser, specifically designed to meet the most demanding applications in the field of neuroscience, biophotonics, microscopy, and engineering. With pulses as short as < 180 fs, average power up to 2 W at 1030 nm, and the option of second harmonic at 515 nm, it is an irreplaceable tool in every lab that needs a reliable, turn-key, ultrafast light source. Thanks to its unique construction and SESAM-free technology it is a cost-effective solution that provides high pulse energy (up to 100 nJ) with an excellent beam quality. Halite’s industrial design facilitates easy integration with both experimental and commercial systems.
Contact us to learn more!
| Halite 1 | Halite 2 | Halite HE (Preliminary) | |
|---|---|---|---|
| Maximum average power | > 800 mW | > 2 W | > 5 W |
| Maximum pulse energy | > 35 nJ | > 100 nJ | > 250 nJ |
| Pulse duration FWHM | < 200 fs | < 200 fs | < 250 fs |
| GDD precompensation | standard GDD precompensation from 10 000 down to -100 000 fs2 (factory preset) | ||
| *Optional computer controlled GDD precompensation tuning 10 000 down to -50 000 fs2 | |||
| Central wavelength | 1030 ± 5 nm | ||
| Cooling method | Air | ||
| Optional wavelength outputs | 515 nm | ||
| Beam quality M2 | <1.2 | ||
| Polarization | Linear, vertical | ||
| Laser control software | Included | ||
All specifications are subject to change without prior notice due to continuous improvements.
Watch how we vibration test Halite SHG laser:
- Shorter pulse option <170 fs
- Higher-harmonic generation option
module converting the 1030 nm output wavelength into 515 nm. Changes the scope of the output power. - Automated GDD precompensation option
- computer controlled GDD precompensation tuning 10 000 down to -50 000 fs2”.
- Truly all-fiber, SESAM-free construction
- Pulse energy up to 100 nJ
- Power up to 2 W
- Pulse duration <200 fs
- Single-box, compact, turn-key solution
- Easy to integrate
Fluence Halite can be used in applications that need pure and stable laser pulses. This includes:
- 2-photon imaging & excitation
- Neuroscience
- Optogenetics
- Second harmonic generation (SHG)
- Two-photon polymerization (2PP)
