- Quick and precise, all-automated tuning
- Passive and stable
- User-friendly software
- Perfect extension for the Fluence Jasper laser

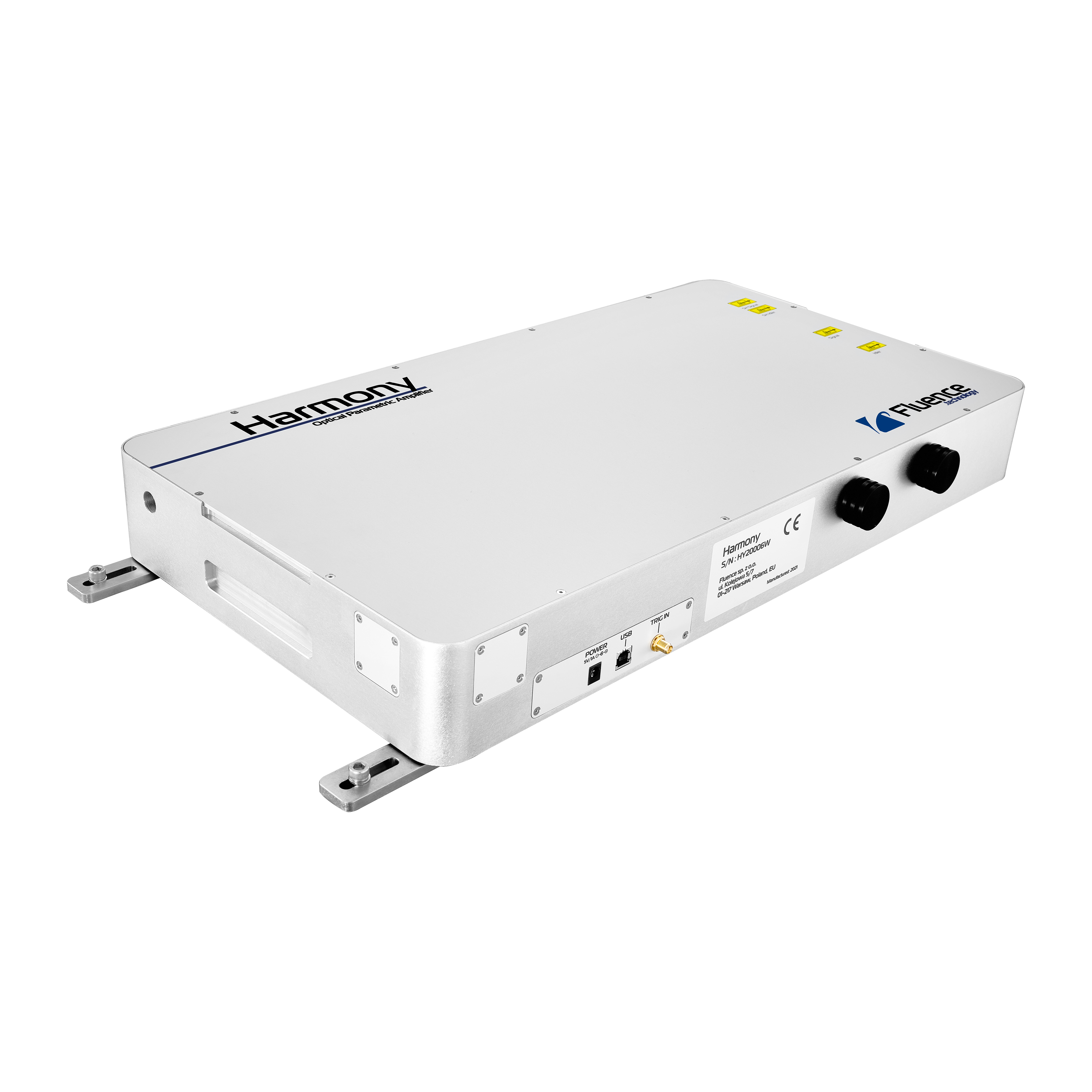

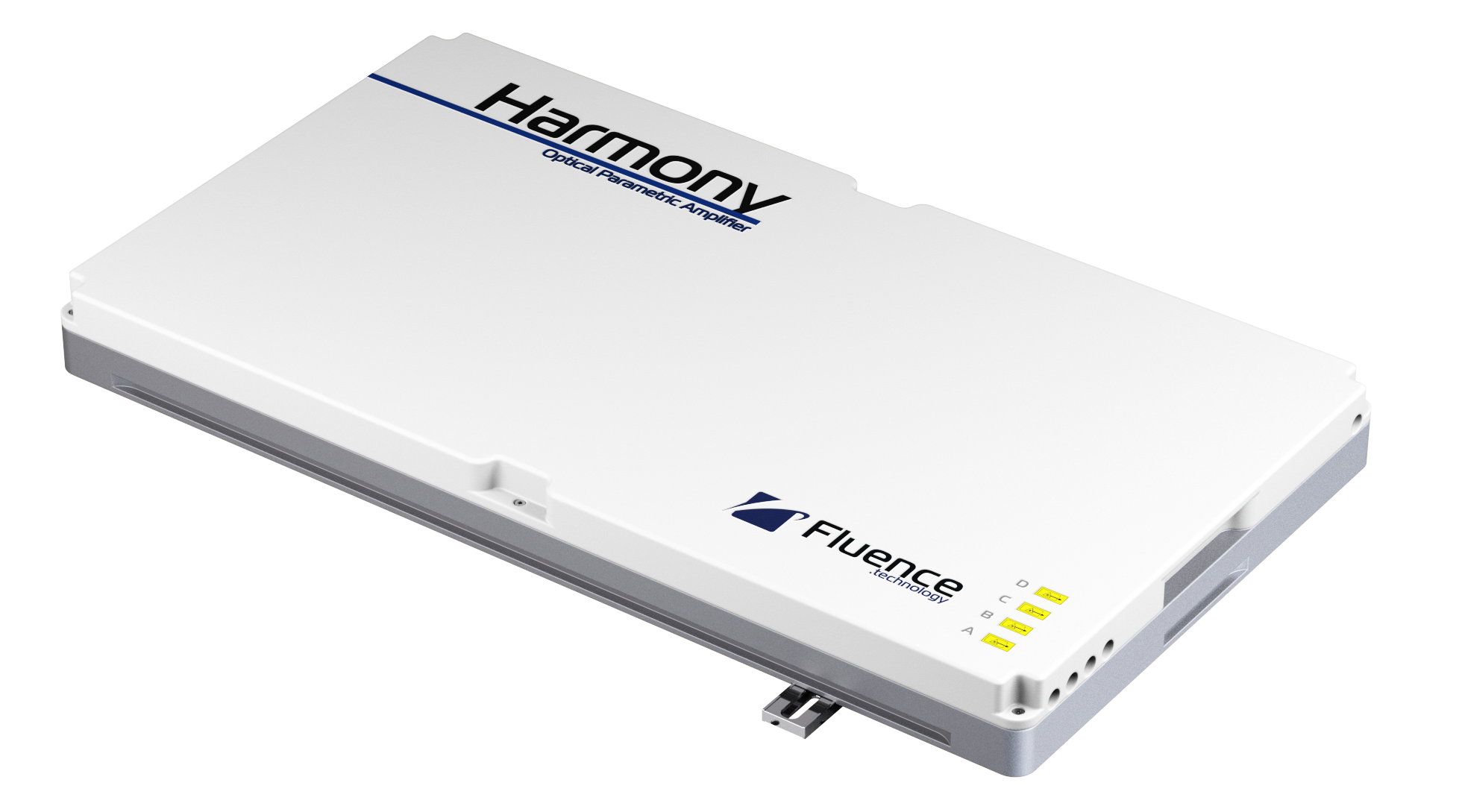

Harmony is a compact optical parametric amplifier that converts ultrafast pulses from Ytterbium-based lasers into broadly tunable pulses with wavelengths ranging from 210 to over 10 000 nm. It is equipped with an integrated mini spectrometer and can be automatically tuned in the base wavelength range of 315 up to 2600 nm with intuitive user-friendly PC software. Harmony can be compatible with all Ytterbium-based femtosecond lasers, but it works best with Jasper family femtosecond fiber lasers featuring an exceptional lifetime and beam pointing stability. Being pumped with Fluence Jasper X0 or Jasper Flex series, it can operate at repetition rates ranging from single pulse up to 300 kHz and pump pulse energy from 30 μJ to 200 μJ.
| Harmony Basic | Second Harmonic | Fourth harmonic | IR | |
|---|---|---|---|---|
| Pulse duration of Signal | < 200 fs (measured/calculated) | < 160 fs (calculated) | < 150 fs (calculated) | < 200 fs (calculated) |
| Size | 560 (L) x 300 (W) x 78 (H) mm³ | |||
| Operating temperature | 15 – 35˚C | |||
| PC software for automated tuning | Included | |||
| Automated tuning | Included | |||
Performance and tuning:
| Output | Tuning range | Conversion efficiency* (BOL**) |
|---|---|---|
| Signal and Idler | 630 – 1030 nm and 1030 – 2600 nm | > 9% (Signal) peak conversion efficiency > 4% (Idler) peak conversion efficiency |
| SH of Signal and Idler | 315 – 515 (SH Signal) nm and 515 – 630 nm | > 2% peak conversion efficiency for 315-515 and 515-630 nm |
| FH of Signal and Idler | 210 – 258 nm and 258 – 315 nm (available upon request) | > 0.5% peak conversion efficiency |
| SH of pump beam | Fixed 515 ± 2 nm | > 40% conversion efficiency |
| IR extension | 2600-10000 nm (available upon request) | > 0.4% peak conversion efficiency > 0.1% in range 2.8 μm-6 μm |
* – combined Signal and Idler with respect to input pump laser average power at 200 kHz. SH – second harmonic, TH – third harmonic, FH fourth harmonic
** – BOL – begining of lifetime
All specifications are subject to change without prior notice due to continuous improvements.
We are more than happy to customise this product for you and add some special features that you require. Do you prefer to have the third harmonic or different polarisation? Just get in touch and let us know.
Spectra of Signal generated from the Harmony
Typical beam profile
Harmony tuning efficiency curve
Harmony is a versatile piece of equipment, due to its broad range of tuning and high conversion efficiency. When seeded with a reliable ultrafast laser such as Fluence Jasper, it may find use in many applications like:
- Pump probe spectroscopy
- Non-linear optics
- Neuroscience
