- Up to 4 switchable wavelengths in one box for unlimited flexibility: 1030 nm, 515 nm, 343 nm, 258 nm
- High conversion efficiency and short pulse duration < 300 fs
- Customizable outputs – unused harmonic outputs as a multichannel IR beam switch
- Fully automated conversion efficiency control
- Advanced automation for long term power stability

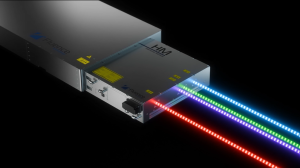

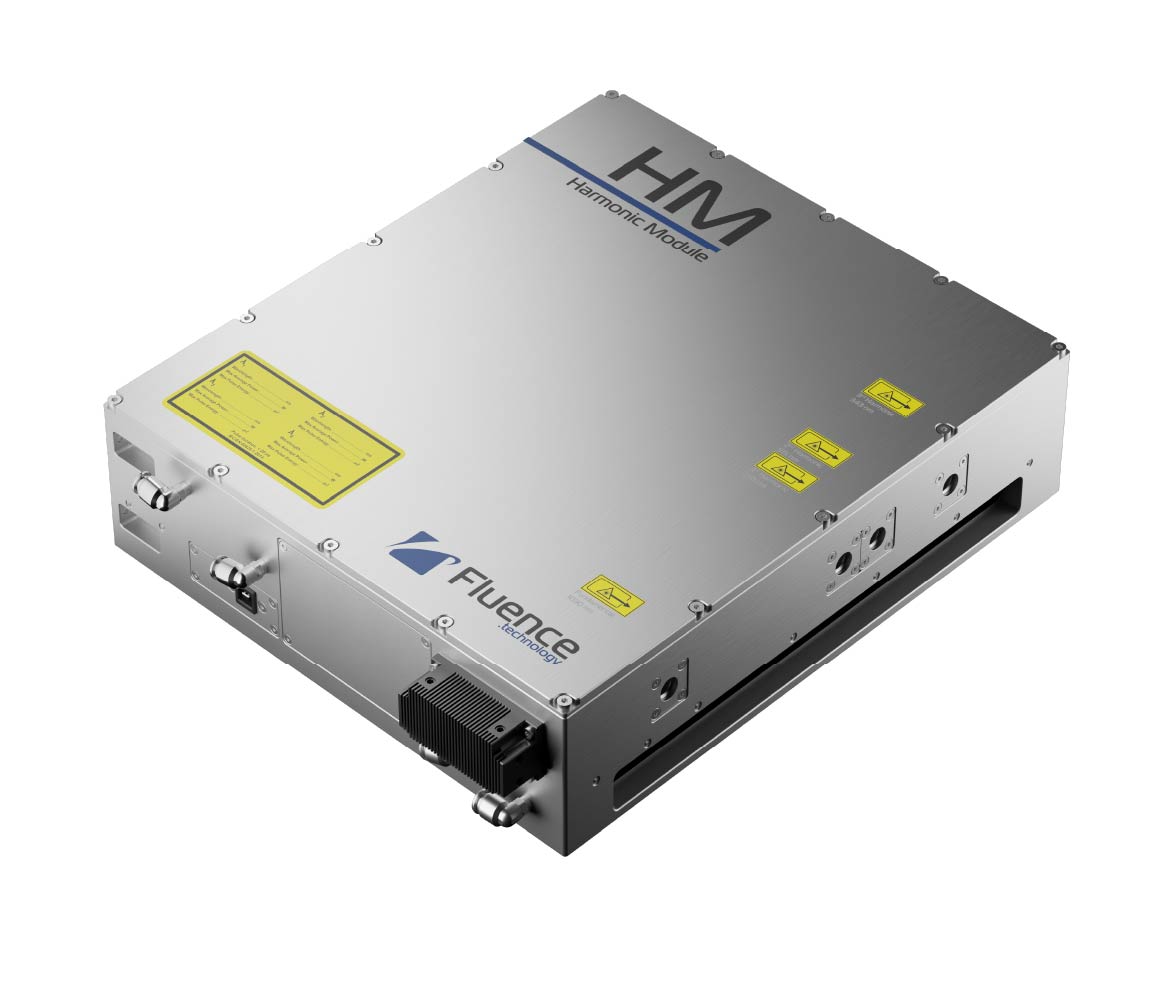

The Harmonic Module is engineered for high-performance wavelength conversion, offering efficiency and reliable long-term operation. Supporting four software-controlled, switchable outputs, including access to deep ultraviolet (DUV) wavelengths, the HM module features automated beam adjustment for stable, precise, and controllable wavelength conversion.
Designed for gas purging, it ensures extended lifetime and consistent power stability. Its sealed, robust construction allows the module to be mounted directly on the laser head or freely integrated into any workstation, offering maximum flexibility for OEMs and system integrators. Customized beam diameter and output configurations are available for seamless integration.
| Model | Harmonic Module | |||
| Max Pump Power | < 60 W | |||
| Pump Pulse Energy | < 200 µJ | |||
| Available Outputs | Port #1 | Port #2 | Port #3 | Port #4 (1) |
| Configuration Example 1 | 1030 nm | 515 nm | – | – |
| Configuration Example 2 | 1030 nm | 515 nm | 343 nm | – |
| Configuration Example 3 | 1030 nm | 515 nm | 343 nm | 258 nm |
| Configuration Example 4 | 1030 nm | 515 nm | 1030 nm | 1030 nm |
| Configuration User Defined (2) | 1030 nm | – | 343 nm | – |
| User Configuration | Output configuration upon request (ask for details) | |||
| Conversion Efficiency (3) | – | < 40% (~50% typ.) | < 20% (~30% typ.) | ask for details |
| Pulse Energy | – | < 100 µJ | < 50 µJ | ask for details |
| Pulse Duration | < 300 fs | |||
| Power Stability, 24h (4) | – | < 1% | < 1% | ask for details |
| Beam Diameter | 2.5 ± 0.5 mm (other upon request) (5) | |||
| Conversion Efficiency Adjustment | Fully automated, software controlled | |||
| Wavelength Switching | Fully automated, software controlled | |||
| Closed Loop Power Stabilization | ask for details | |||
| Dimensions (L x W x H) | 320 x 393 x 88.3 mm | |||
| Housing | Sealed Enclosure, Prepared for Gas Purging | |||
| Control | GUI (USB) | |||
All specifications are subject to change without prior notice due to continuous improvements.
1. Without guaranteed lifetime. May serve as an alternative 1030 nm output.
2. Factory set.
3. With Jasper X1 lasers.
4. NRMSD under stable environmental conditions.
5. Individual output beam diameter customization available. Beam expanders integrated within device.

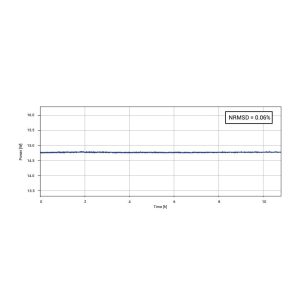

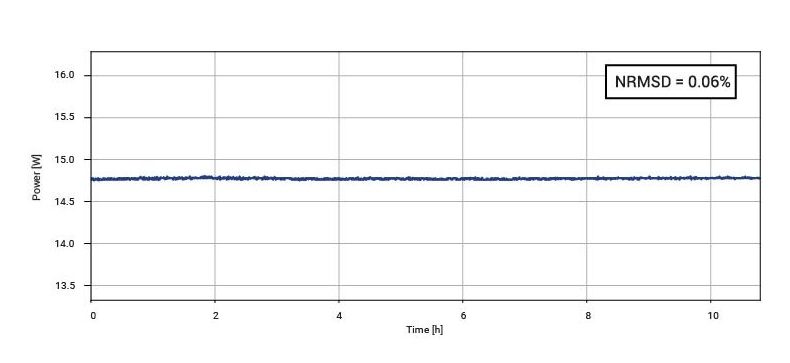

Second Harmonic Power stability

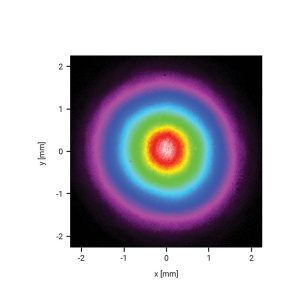

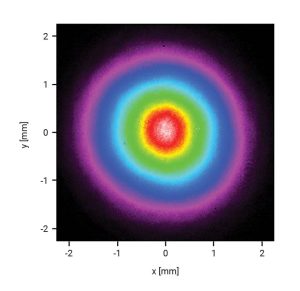

Second Harmonic Typical beam profile

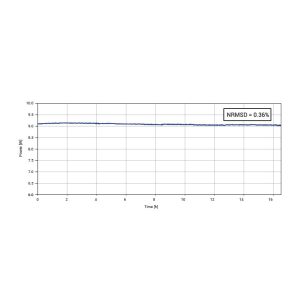

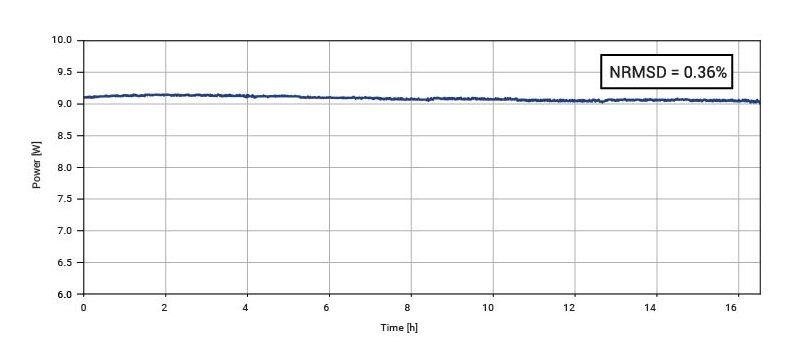

Third Harmonic Power stability

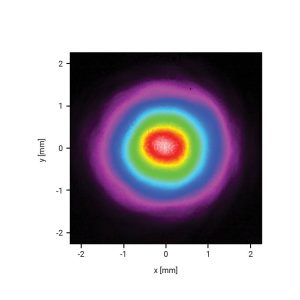

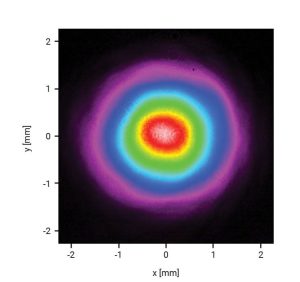

Third Harmonic Typical beam profile
Harmonic Module is the right choice wherever efficient, stable, and precise wavelength conversion across multiple outputs, including deep UV, is required. Example applications include:
- Micromachining
- Polymer cutting
- Surface structuring and activation
- Ophthalmology
- Semiconductor & OLED manufacturing
- Solar cell manufacturing
- Stents and medical device manufacturing
- Microprocessing with micrometer-level precision
- Microperforation
- Micromarking
